Air handling units

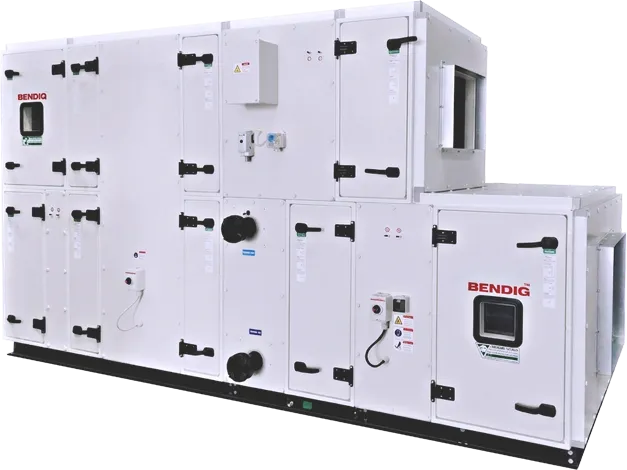

AHU+Energy Recovery
We divide our energy recovery concept into 2 sections
1. AHU+ for Energy recovery
2. AHU+ for Dehumidification
AHU + for Energy recovery
Reclaiming heat from exhaust air and returning it to the fresh supply stream reduces energy consumption in a huge range of buildings such as hospitals, swimming pools, supermarkets, schools and colleges, restaurants, and social clubs. In every case, the running cost of the energy recovery system is virtually nil, and maintenance is minimal
AHU+ for Dehumidification
Pre cooled and Reheated in AHU enhances the performance of a dehumidifier and improves the quality of the recycled air. The energy recovery provides a more comfortable environment for living and working in applications such as shopping malls, call centres, supermarkets for example. The improvements in efficiency come without any increased running costs from the heat pipe.
ERV-Heat Pipe
ERV-PHE
ERV-Rotor
ERV-Run-around Coil

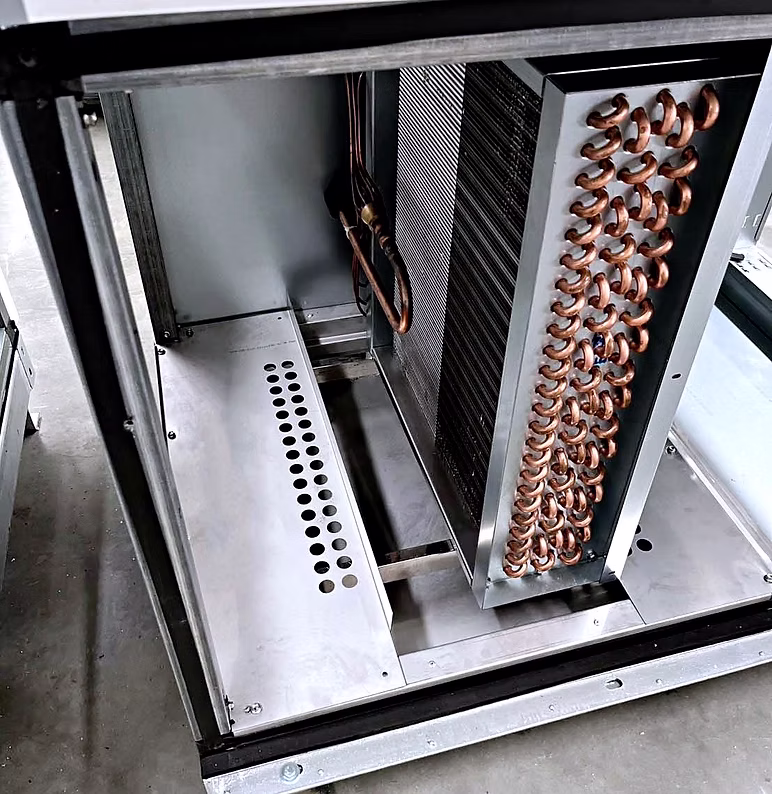

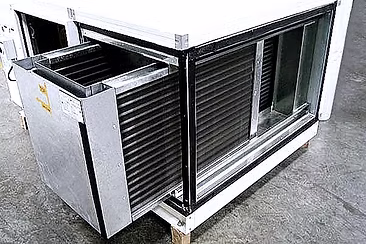

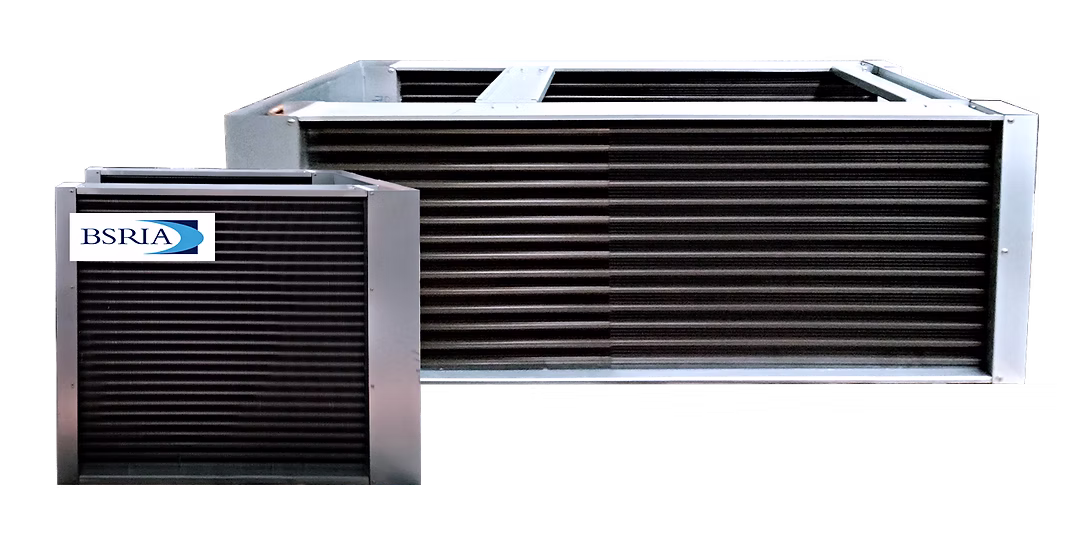

ERV-Heat Pipe
Please contact your BENDIG sale-person for more detail
Advantage of Heatpipe
- No direct energy input
- Noneed reheat or desiccant systems
- Can be installedin ductorinAHU
- Totally passive
- Easy drainage ofcondensation
- Environmentally safe
- Nomoving parts
- Low air pressure drop
- Zero cross contamination
- Virtually maintenance free
- Create nealthy environment by providing better indoor air quality.
Scope of application
Air Dehumidification Specializes in removing excess moisture from the air to create a comfortable and healthy environment.
Energy recovery air Recovers and reuses energy from the exhaust air stream, boosting system efficiency.
BSRIA-Certified performance Guarantees performance standards and reliability, backed by a respected industry certification.

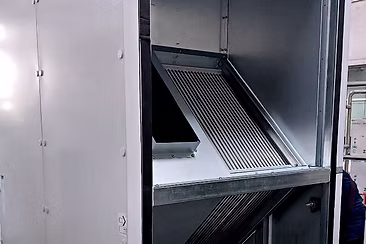

ERV-PHE
Plate-Heat Exchanger
Please contact your BENDIG sale-person for more detail
Scope of application
Energy recovery: Recovers heat or cool air from the exhaust to save energy.
Pre-cooled and reheated with moisture remove: Cools and dehumidifies the air, then reheats it to a normal temperature.
Dehumidification purpose: Specifically designed for removing moisture from the air.
Provided scope
- Cross flow (single of double air steam)
- Counter-flow
- High air volume flow
- Epoxy coating PHE
Advantage of PHE
- High efficiency for energy recovery
- Eliminate moving part or energy input
- Can be use as precooled and reheat
- Can be installed in duct or in AHU
- Totally passive
- Easy drainage of condensation
- Environmentally safe
- Low air pressure drop
- Create healthy environment by providing better indoor air quality.

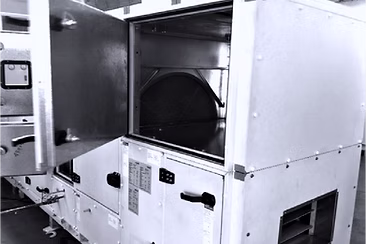

Principle of productThe
rotating heat exchanger consist of a rotatingwheel, casing and drive unit. As the wheelrotates slowly, the heat from the exhaust air ispicked up by the aluminium in the matrix andtransferred to the cool supply air. Their smallfoot-print and the high sensible efficiency thatthey provide. The possibility of adding coatingto wheel, which allow latent transfer, is anotherfactor favoring these products
ERV-Rotor WHEEL
Please contact your BENDIG sale-person for more detail
Features and Benefits
Energy Recovery : Captures thermal/cooling energy from exhaust air to pre-treat fresh supply air, significantly reducing energy load on the AHU.
Latent Heat Removal (Moisture Control) Recovers latent heat (moisture) using an Enthalpy Wheel to simultaneously control both humidity and temperature.
Double Rotors Configuration. Uses two energy recovery wheels for ultra-high efficiency or separate, precise control of sensible heat and latent heat.
Rotor + Heatpipe (Hybrid System) Combines a Rotor Wheel with a Heat Pipe for efficient, stable hybrid heat transfer, often minimizing cross-contamination.
ERV-Run-Around Coil
Please contact your BENDIG sale-person for more detail
Features and Benefits
Separate ahus. shared heat.
Fluid heat transfer. 50-55% sensible recovery.
Flexible placement. easy retrofit
Independent ahu heat recovery.
