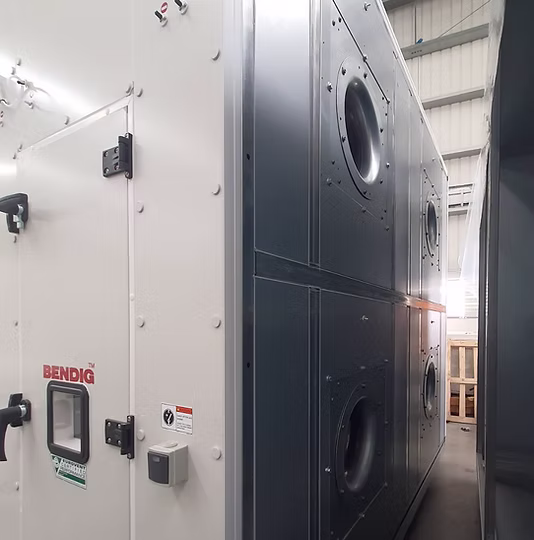

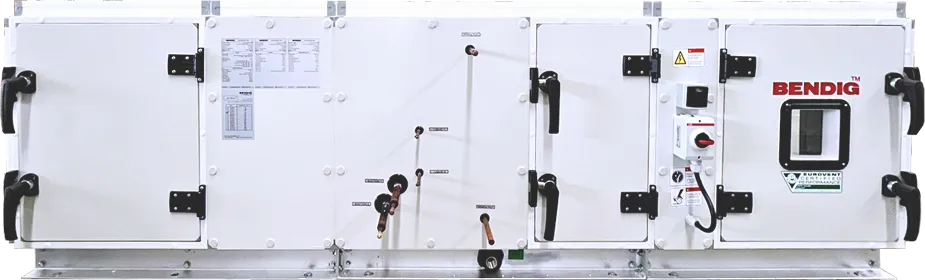

The Air Handling Unit (AHU) of the BENDIG brand is a product designed and manufactured under high-quality standards to meet the diverse requirements of air conditioning and ventilation systems in commercial buildings, industrial facilities, and specialized structures. Its main strengths lie in Customization Flexibility and Energy Efficiency, which comply with European standards and are certified by international institutions such as Eurovent Certification.
Standard Application:
Construction
Double skin Structure-enclosed AHU
Insulation
Standard insulation is non combustion grade RockwoolTM
Frame-works
Pregalvanised steel or SUS304 or SUS316 and 316L
Heating Battery
Electric Heater, Hot Water coil and Steam-Coil also available
Damper
Aluminium opposed-blade damper
Filter Cell
Standard combine filter-holder
Low-Leakage filter-holder
H13 and above filter-holder
Panel Thickness
50 mm. Standard
Delivery method
Completely-knock down
Cooling battery
Chilled water source and Direct-Expansion
Fan
Open-wheel and Centrifugal Direct-Driven or Belt-Driven
Motor
IE1,IE2 and IE3 also available
Construction
Panels Double skin Structure-enclosed AHU to enhance thermal insulation and noise reduction (Noise Attenuated), as well as to prevent external condensation (Sweating).
Standard insulation is non combustion grade RockwoolTM

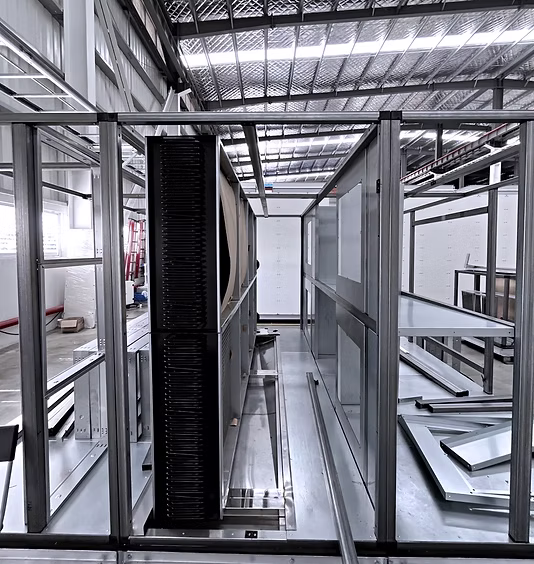

Casing material is often an Aluminium Rigid Frame for durability and long service life.
1. Stainless steel
304, 316 for high corrosive condition
2. Per Galvanized steel profile
as C4 according to EN 12944-1
DETAIL : Damper

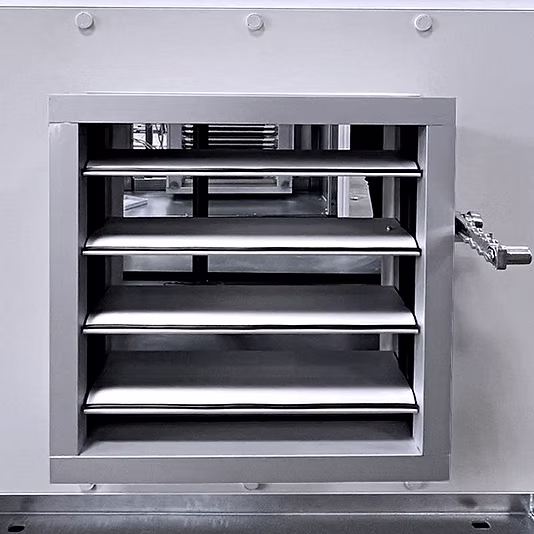

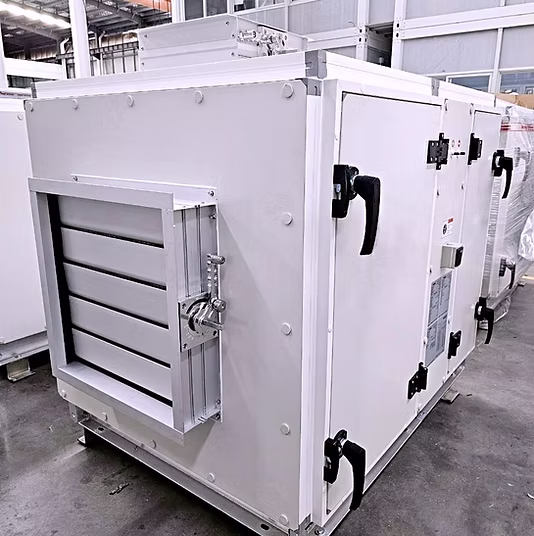

Volume Damper
Controls and balances the airflow through the duct system.

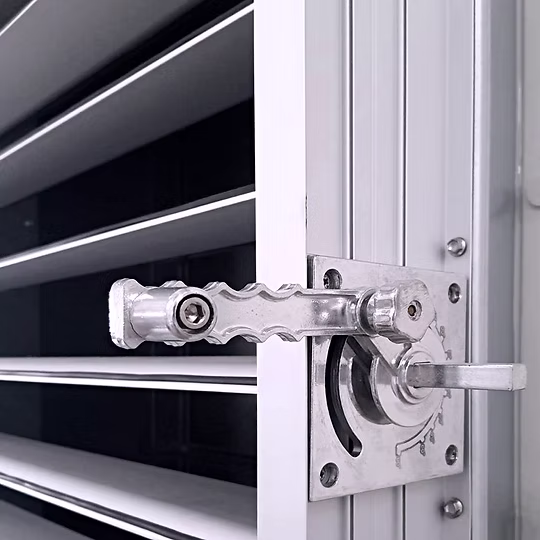

Volume Damper
Controls and balances the airflow through the duct system.

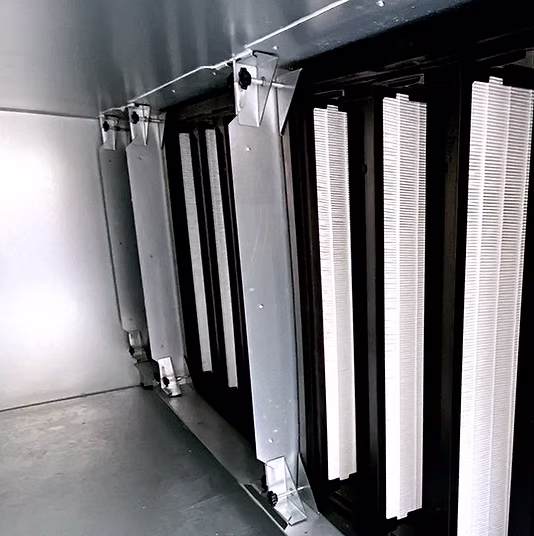

DETAIL : Section FILTER

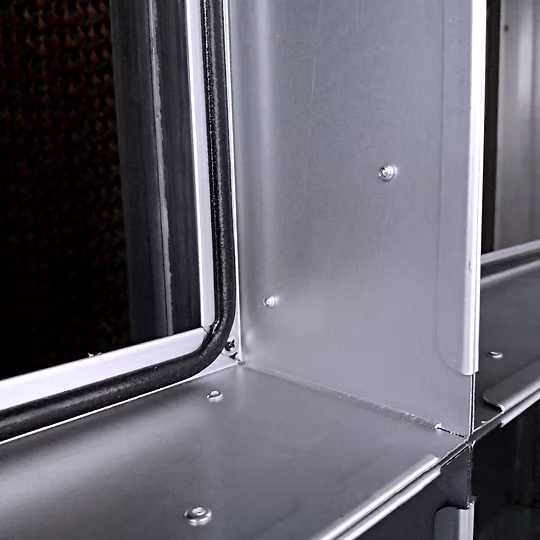

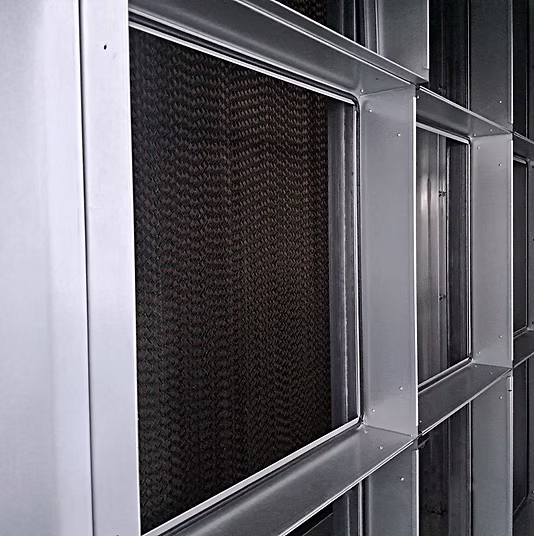

The filter section is designed to accommodate multiple filter stages
(e.g., Pre-Filter, Medium Filter, and/or HEPA Filter)
The design incorporates a robust, easy-to-use clamping device to ensure quick and tight filter replacement.
The design features tight sealing to prevent Filter Bypass Leakage, ensuring compliance with the Eurovent Hygienic standards.

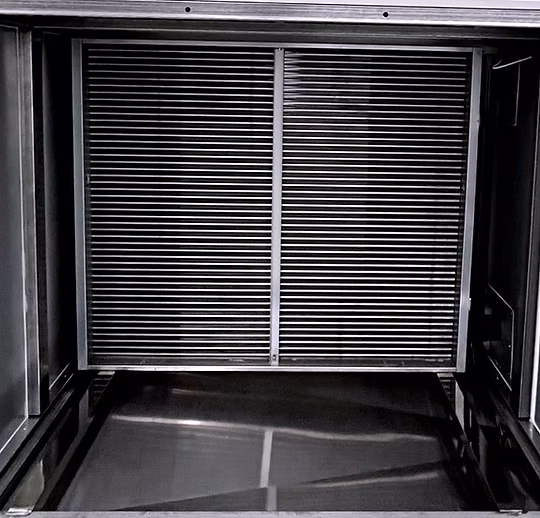

DETAIL : Section Coil

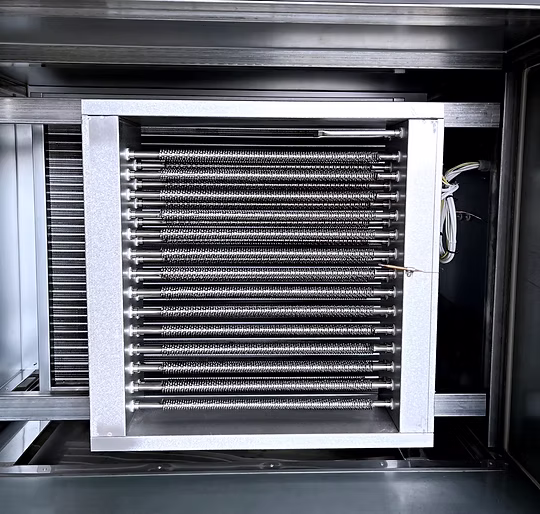

Heating Battery
Electric Heater, Hot Water coil and Steam-Coil also available
Cooling battery
Chilled water source and Direct-Expansion

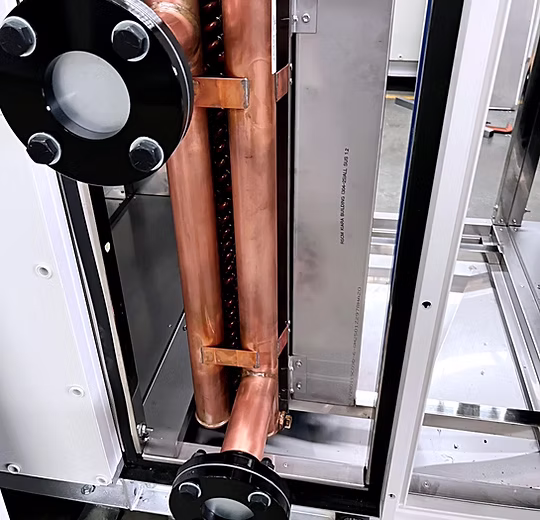

Pipe Water In – Water Out

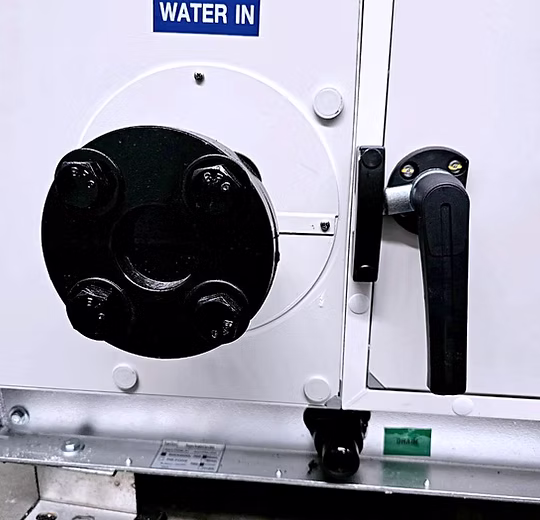

This section features the connection points for the unit’s water inlet and outlet, designed for systems requiring water-based cooling or heat exchange. The connections are engineered for a secure, robust fit and include a clearly labeled “Water In” position to ensure precise and accurate in

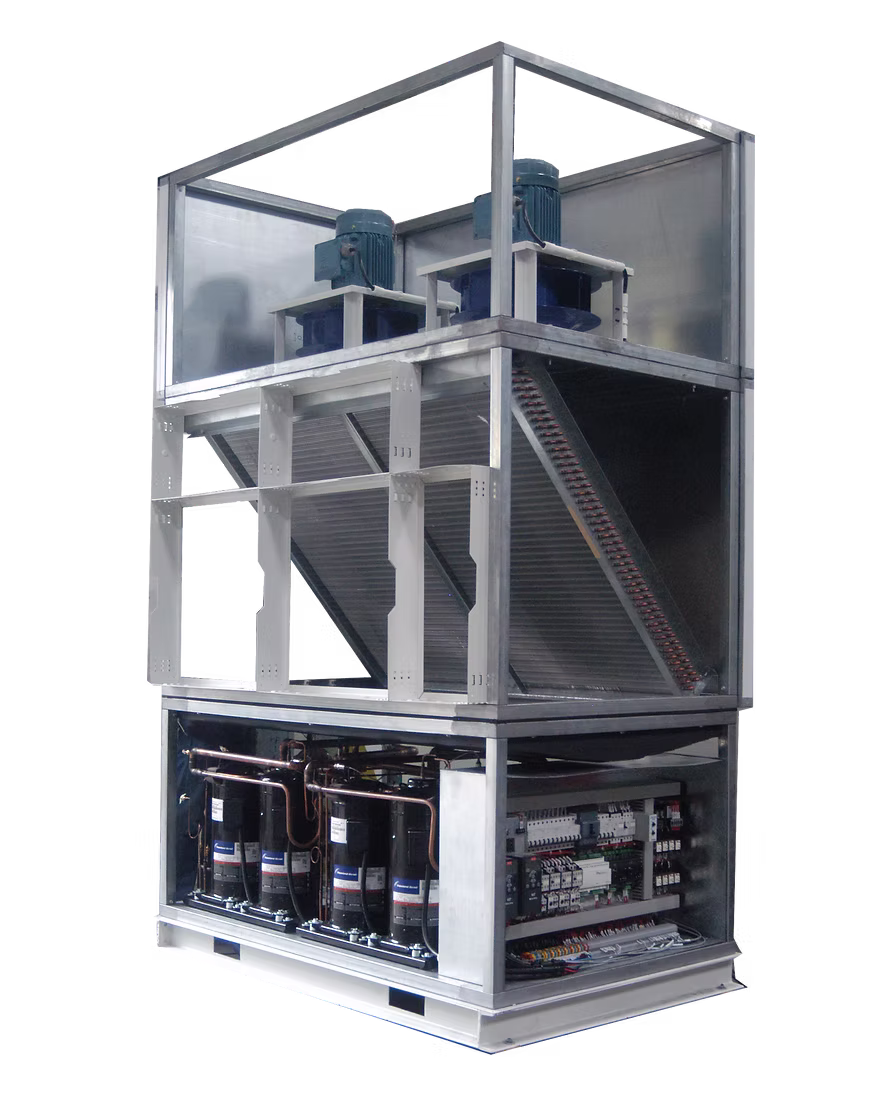

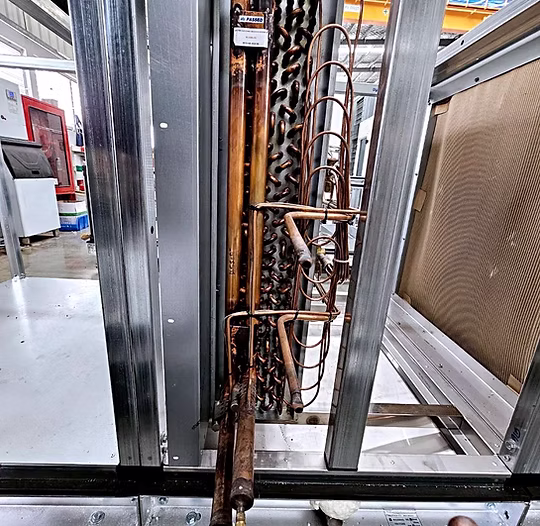

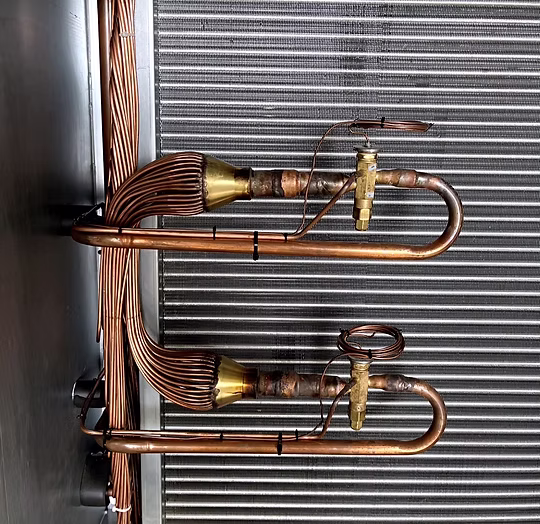

The Direct Expansion (DX) Coil is an evaporator coil in a vapor-compression refrigeration cycle, constituting a direct cooling system.
Mechanism: Low-pressure, low-temperature refrigerant is metered into the coil, where it directly absorbs heat from the passing air and undergoes a phase change (expansion) into a gas before being compressed and condensed in an external unit.

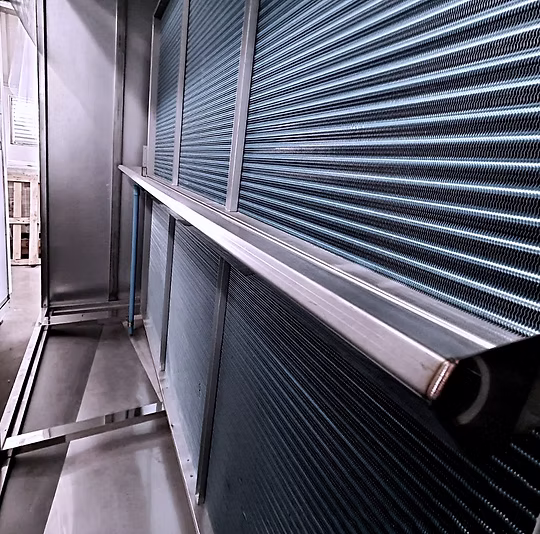

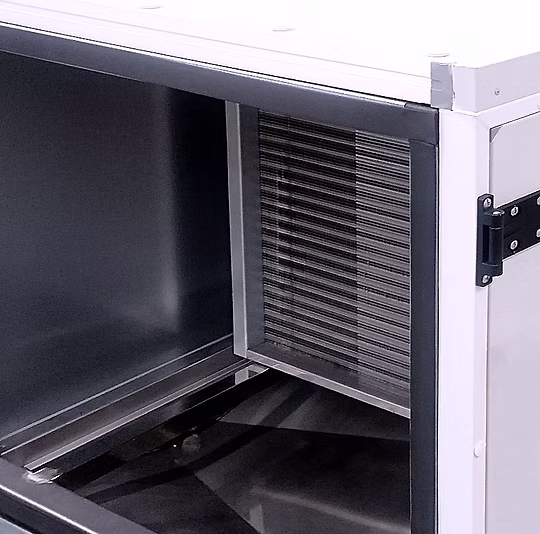

Stainless steel drain pan
Corrosion-resistant drain pan to collect condensate under cooling coils.
2-layer water tray for large machines
DETAIL : Section Fan
BENDIG provides a wide range of optional accessories to ensure safe operation, efficient maintenance, and superior usability for all AHU configurations. Each item is selected to support performance, reliability, and user convenience.
FAN Typ

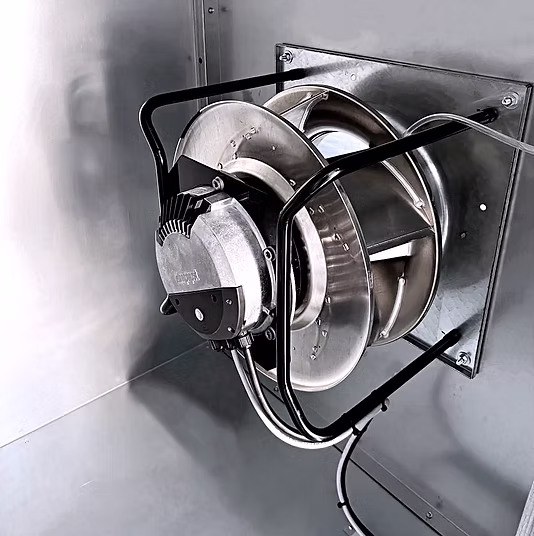

EC-Fan
High-efficiency electronically commutated fan with built-in speed control and low energy consumption.

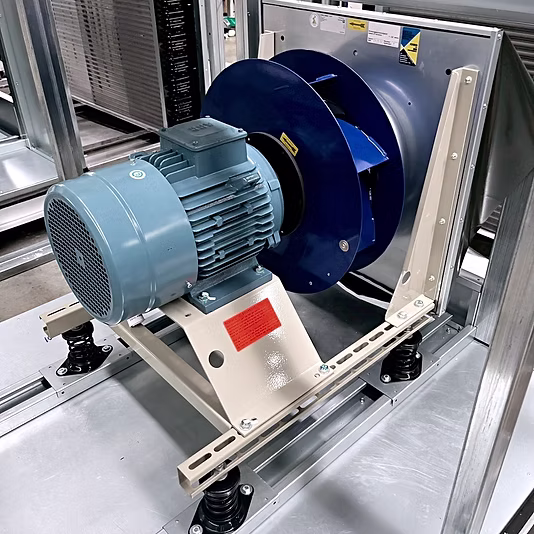

Plug-Fan Compact
Direct-drive centrifugal fan ideal for modular AHUs and flexible airflow directions.

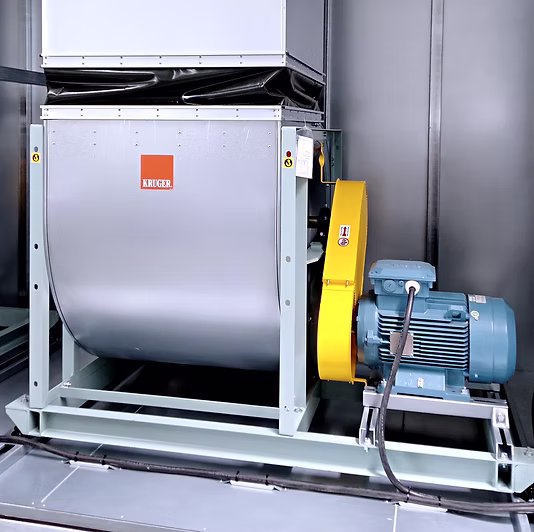

Centrifugal-Fan
Belt-driven fan with high static pressure capability, suitable for large-volume airflow systems.
Accessory

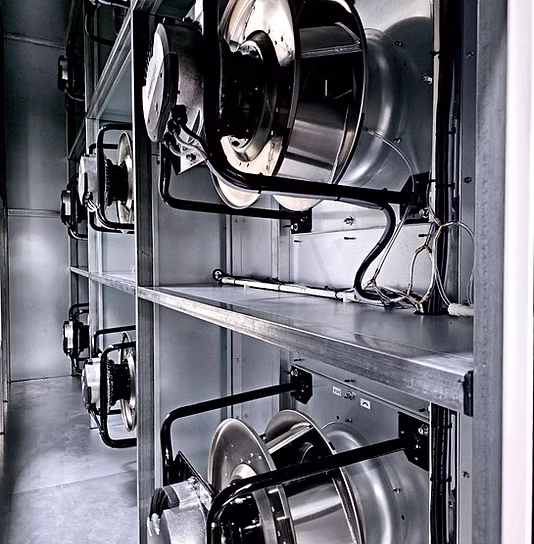

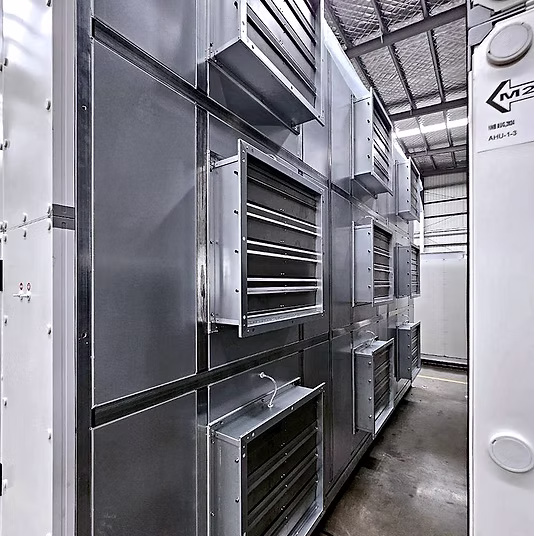

Gravity Damper for Multiple-Fan
Prevents reverse airflow into idle fan sections when other fans are running.

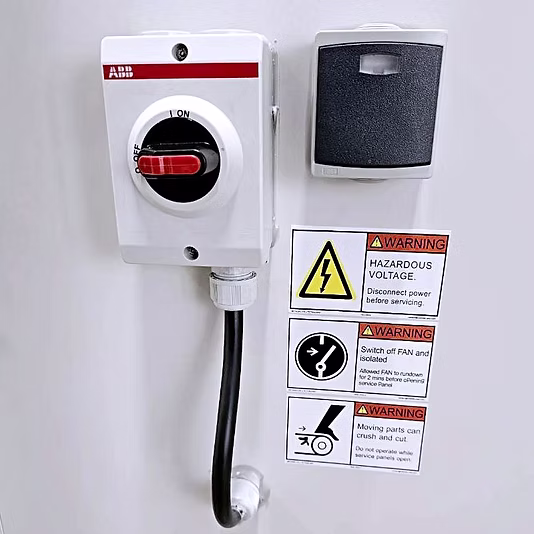

Disconnection Safety switch
Ensures electrical isolation during maintenance for operator safety.
Lighting switch IP65
Provides internal illumination with waterproof switch for easy servicing.

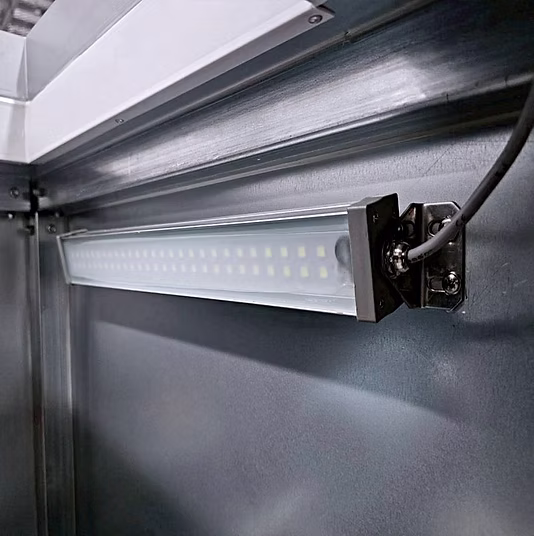

Lamp for fan section
for easy internal visibility during maintenance.

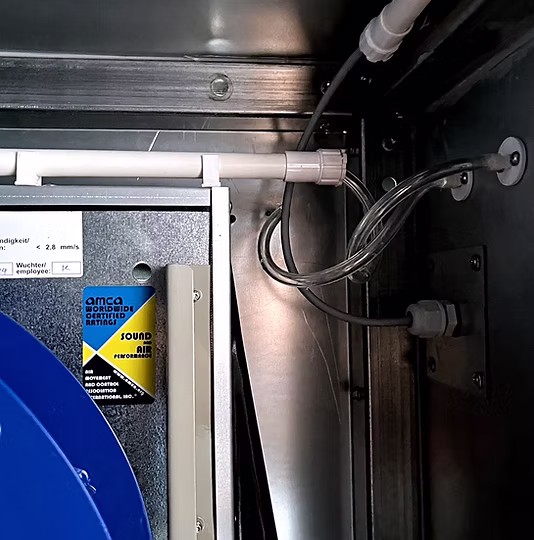

Pressure Port
Enables pressure measurement for system monitoring and diagnostics.

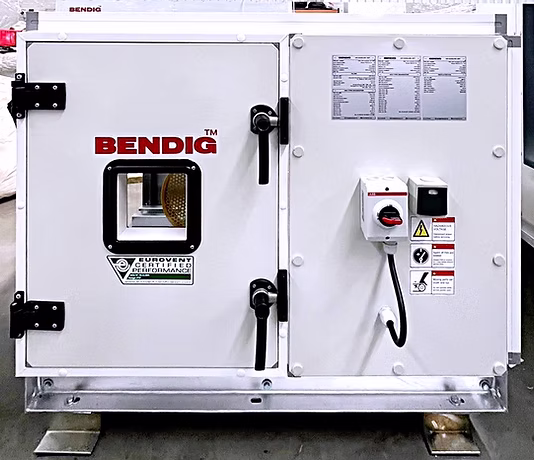

DETAIL : Door

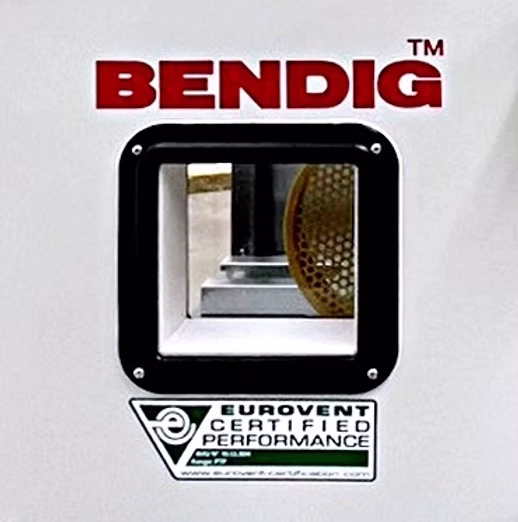

Inspection Glass for fan section
Durable lock system to prevent unauthorized access.

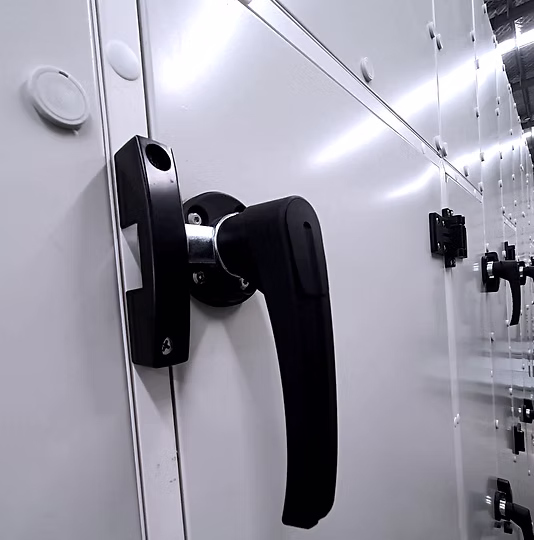

Heavy duty industrial lock Durable lock, Ergo design hand lock is human friendly equipment design. This make operator or relevant persons confidently use and handle AHU. Key lock can be provide as an optional.

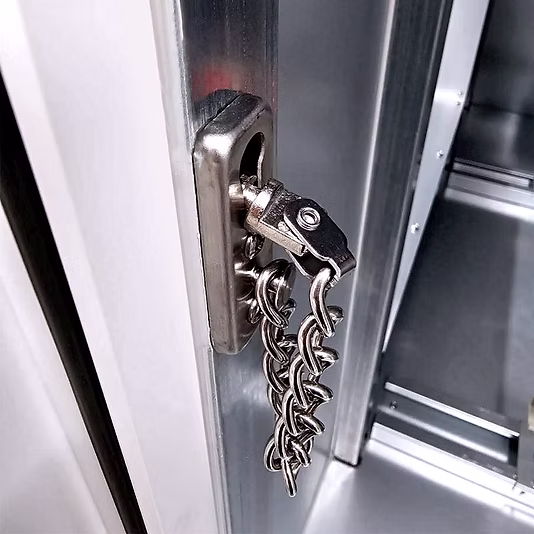

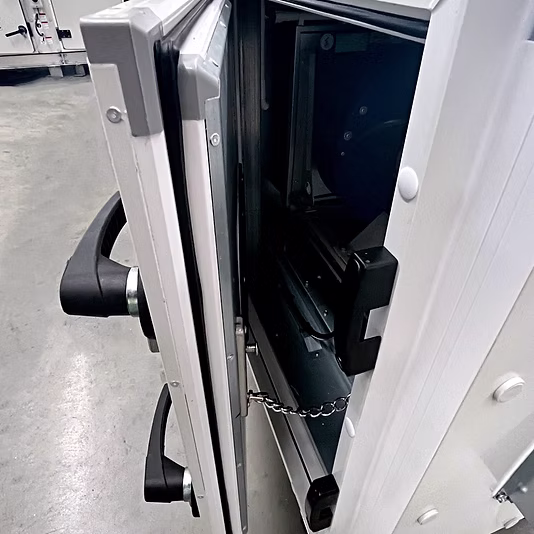

Door Gasket Push-Fit design door gasket ensures unit air tight ness with class L1/L1. Adhesive or gasket-in-place sealant not allow for our PTP-H air handling unit. The gasket materials comply with action of microbe test standard, ISO EN 846.
